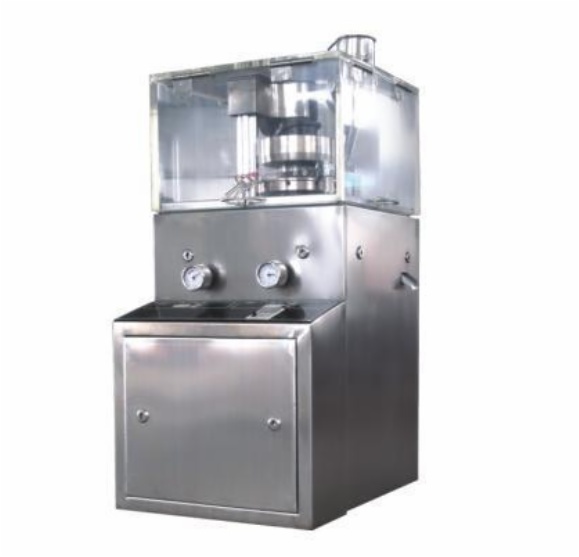

    ZP5/7/9 Small rotary tablet press machine
    Product Description
              This is a compact type of the automatic rotation and continuous tablet press, mainly used in the technical research in pharmaceutical, chemical, food, electronic and other industries, and it is an important equipment for checking whether the grain materials can be pressed into tablets.
    Features:



    1) It is applicable to pressing of grain materials available to be made into tablets (within the range of pressure of the machine) with the powder content (above 100 mesh) not more than 10%.
    2) It is applicable to pressing of regular/irregular shape and scoring tablets.
    3) It is not applicable for semi-solid, wet grain, materials of low melting point and easily absorbing dampness and powder without grain.
    4) made of SS304 or 316L, meet GMP standard, more stable then TDP single punch tablet press.
    5) more easy operation and maintenance.



    Technical Data:
    Item
    ZP5
    ZP7
    ZP9
    Dies
    5
    7
    9
    Max pressure( KN )
    40
    40
    40
    Max dia. of tablet (mm )
    20
    20
    20
    Max. filling depth (mm )
    15
    15
    15
    Max. thickness of tablet (mm)
    6
    6
    6
    Max. production capacity(pc/h)
    9600
    13440
    18240
    Turret Speed (r/min )
    0-32
    0-32
    0-32
    Motor
    1.5KW, 220V, 50HZ
    1.5KW, 220V, 50HZ
    2.2KW, 220V, 50HZ
    Overall size (mm)
    600*960*1150
    600*960*1150
    600*960*1150
    Weight (kg)
    260
    260
    260
