Machine introduction:

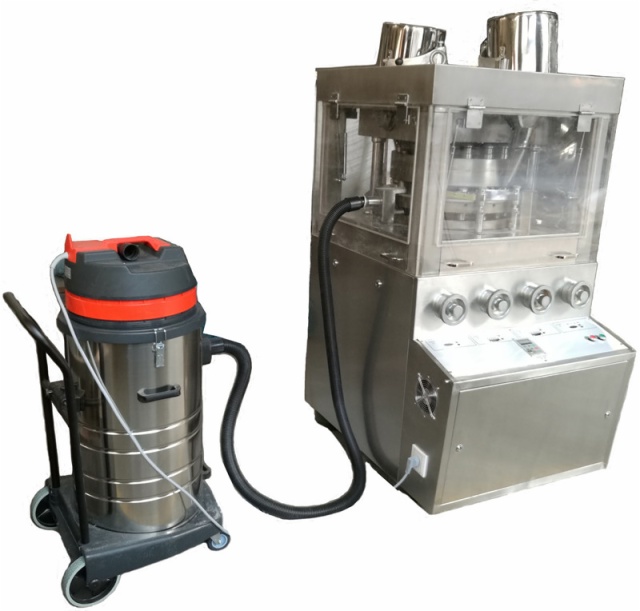

ZP25 is a Double side rotary press machine, stainless steel 304 cover , meet for GMP pharmacy standard , it can press diameter 6-25mm product , it can press 25mm Effervescent tablets, it can
press special polo ring product ,(outside diameter 20mm inner φ8mm thickness 4mm.), it has two pressure , two hoppers and ejection tablets from two sides, which capacity is higher than normal single side rotary machines. a good choice for pharmacy production company.
1)totally enclosed
2)smooth operation
3)equipped with a vacuum cleaner for free
4)the press pulley, upper and lower orbital area, bearing calcined after heat treatment,more
wear-resisting.
5)no dead angle, easy to clean.
6)meet the GMP standard
7)double side eject the tablets out, high capacity.
ZP25 is a Double side rotary press machine, stainless steel 304 cover , meet for GMP pharmacy standard , it can press diameter 6-25mm product , it can press 25mm Effervescent tablets, it can
press special polo ring product ,(outside diameter 20mm inner φ8mm thickness 4mm.), it has two pressure , two hoppers and ejection tablets from two sides, which capacity is higher than normal single side rotary machines. a good choice for pharmacy production company.
1)totally enclosed
2)smooth operation
3)equipped with a vacuum cleaner for free
4)the press pulley, upper and lower orbital area, bearing calcined after heat treatment,more
wear-resisting.
5)no dead angle, easy to clean.
6)meet the GMP standard
7)double side eject the tablets out, high capacity.
Following is the specification of ZP25 for your reference.
| Model | ZP25 |
| Dies | 25sets |
| Max Pressure | 80Kn |
| Dia of Tablet | 6-25mm |
| Max Depth of Fill | 15mm |
| Max Thickness of Tablet | 6mm |
| Turret Speed | 15 r/min |
| Production Capacity | 45000pcs/h Machine has frequency inverter, speed is adjustable. |
| Motor | 5.5kw 1440r/min 380v3p 50hz |
| Net Weight | 1800kg |
| Overall Size | 1060*850*1480mm |
