This model is hot sale for 25mm Effervescent tablet production. Part 1-Machine introduction:
Application

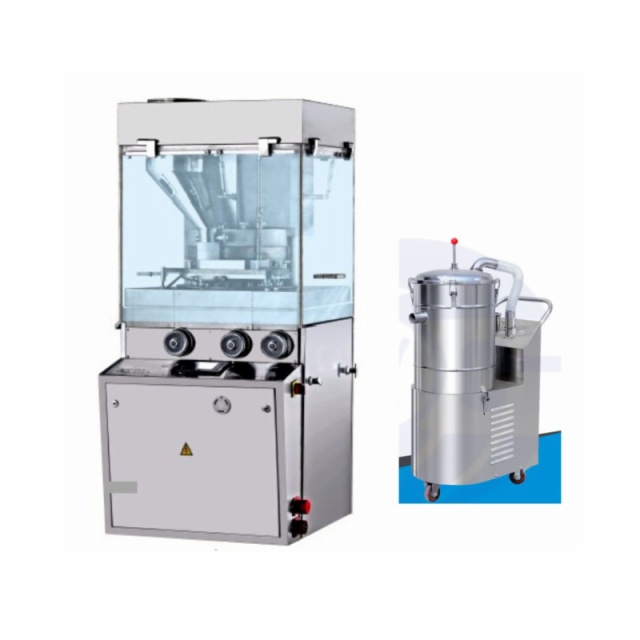

This machine is single side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. It is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries. It adopt international standard mould.
Feature:
Meet GMP requirement, machine design is reasonable. Operation, dismantling and maintenance is convenient.
With high main-pressure and pre-pressure, extending the pressing time and making good quality tablets.
The speed of turret is high and adjustable, its linear velocity is up to high speed tablet press.
PLC and touch screen control, all the running parameter can be set and shown.
The machine can stop automatically in case of any upper punch broken.
Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
It is equipped with force feeder, to improve granules flow ability and filling performance.
Tooling is D standard. Part 2: Specification of ZP24A.
Application
This machine is single side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. It is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries. It adopt international standard mould.
Feature:
Meet GMP requirement, machine design is reasonable. Operation, dismantling and maintenance is convenient.
With high main-pressure and pre-pressure, extending the pressing time and making good quality tablets.
The speed of turret is high and adjustable, its linear velocity is up to high speed tablet press.
PLC and touch screen control, all the running parameter can be set and shown.
The machine can stop automatically in case of any upper punch broken.
Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
It is equipped with force feeder, to improve granules flow ability and filling performance.
Tooling is D standard.
| Model | ZP24A | |
| Number of Stations | 24 | |
| Tooling Standard | D | |
| Max Main Pressure (KN) | 100 | |
| Max Pre-pressure (KN) | 20 | |
| Max Tablet Diameter (mm) | round tablet | 25 |
| irregular tablet | 25 | |
| Max Filling Depth (mm) | 18 | |
| Max Tablet Thickness (mm) | 7 | |
| Max Production Capacity (pcs/h) | 93600 | |
| Motor Power (kw) | 5.5 | |
| Overall Size (mm) | 960×910×1750 | |
| Machine Weight (kg) | 1650 | |
