Machine introduction:

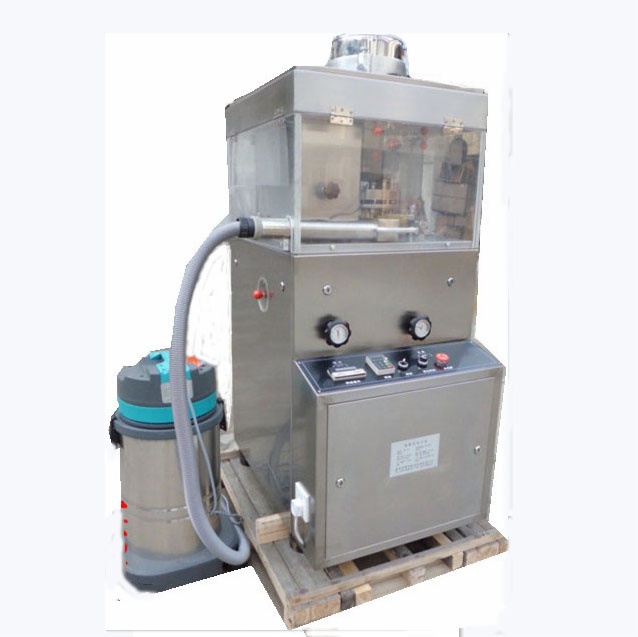

This ZP17 rotary tablet press machine is an automatically tablet press machine revolving piece
-pressing machine which could make granulate be pressed to be round piece, be carved characters, special shapes. It is mainly used in manufacturing piece prescription for pharmaceutical industry and industry enterprises like chemical industry, foods, electronics.
1)totally enclosed 2)smooth operation
3) equipped with a vacuum cleaner for free
4) the press pulley, upper and lower orbital area, bearing calcined after heat treatment, more wear-resisting.
5) no dead angle, easy to clean.
6)meet the GMP standard.
Following is the specification ofZP17 for your reference.
Model | ZP17 |
Dies | 17sets |
Max Pressure | 80Kn |
Dia of Tablet | 6-20mm |
Max Depth of Fill | 15mm |
Max Thickness of Tablet | 6mm |
Turret Speed | 37 r/min With frequency inverter, speed is adjustable. |
Production Capacity | 40000pcs/h |
Motor | 3.0kw 940r/min 380v3p 50hz |
Force feeder | It can be installed with force feeder (optional) |
Frequency Inverter | 2.2kw |
Net Weight | 1000kg |
Overall Size | 650*890*1415 mm |
