Ref: RHJCV
This RHJ-C machine uses two mixing speeds on one shaft to make high-viscosity products smoother and homogenized to achieve the best emulsification performance at the ideal position. Used for machine cleaning and maintenance of the system.Model: RHJ-C
Capacity:1000L
Material: SUS316 SUS304
Mixing: upper two-way mixing
Mixing speed:0-65rpm
Homogenizing: upper. bottom homogenizer (optional)
Homogenizing speed: 0-3600rpm
Operating Method: Switch. Screen (optional)
Heating Method: steam heating. electric heating (optional)
Application: cream, lotion, gel, ointment etc
Warranty: one year
Product Profile

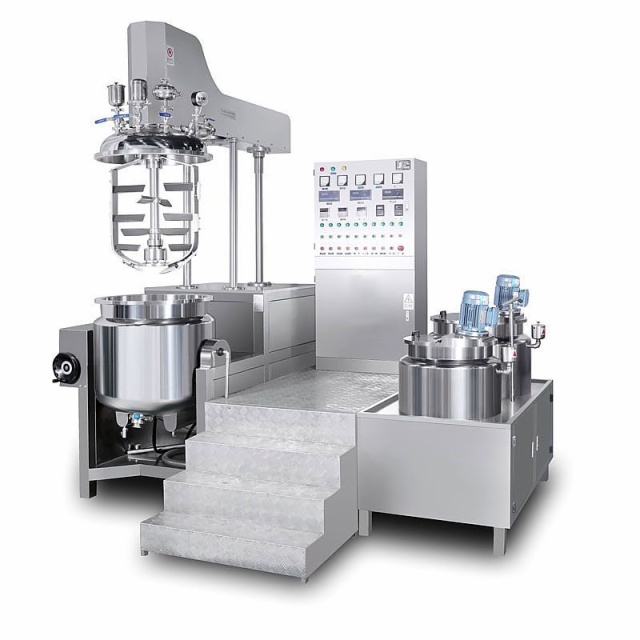

RHJ-C Vacuum emulsifying mixer (Upper homogenizer type), this series machine adopt two mixing speed on one shaft to make high viscosity product more smooth, homogenizer makes it upper in the perfect position to reach best emulsion function, homogenizer speed is 0-3600RPM, hydraulic lifting system for product outlet and machine clean and maintenance more convenience. More details are as below:
Performance and characteristics
1. Complex scraping board blending oar is suitable for every kind of complicated recipe and achieves optimizing effect;
2. Polytetrafluoroethylene scraping board cater to the body of blending groove and scrape out viscosity material on boiler wall;
3. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During a few productions, it can exert the homogenizing effect fully;
4. Mightiness balance isotactic curve rotor is matched with stator with the corresponding structure to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accord with Daily Chemical and GMP regulation.
5. Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r / min.
1. Complex scraping board blending oar is suitable for every kind of complicated recipe and achieves optimizing effect;
2. Polytetrafluoroethylene scraping board cater to the body of blending groove and scrape out viscosity material on boiler wall;
3. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During a few productions, it can exert the homogenizing effect fully;
4. Mightiness balance isotactic curve rotor is matched with stator with the corresponding structure to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accord with Daily Chemical and GMP regulation.
5. Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r / min.
Scope of application
This RHJ-C Vacuum emulsifying mixer machine is mainly applied in such industries as daily chemical care products, cosmetic, pharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, fine chemical industry, etc. this series machine adopt two mixing speed on one shaft to make high viscosity product more smooth, homogenizer makes it upper in the perfect position to reach best emulsion function, homogenizer speed is 0-3600RPM, hydraulic lifting system for product outlet and machine clean and maintenance more convenience. The emulsifying effect is more prominent for materials of high base viscosity. Mightiness balance isotactic curve rotor is matched with stator with the corresponding structure to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream.
This RHJ-C Vacuum emulsifying mixer machine is mainly applied in such industries as daily chemical care products, cosmetic, pharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, fine chemical industry, etc. this series machine adopt two mixing speed on one shaft to make high viscosity product more smooth, homogenizer makes it upper in the perfect position to reach best emulsion function, homogenizer speed is 0-3600RPM, hydraulic lifting system for product outlet and machine clean and maintenance more convenience. The emulsifying effect is more prominent for materials of high base viscosity. Mightiness balance isotactic curve rotor is matched with stator with the corresponding structure to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream.
