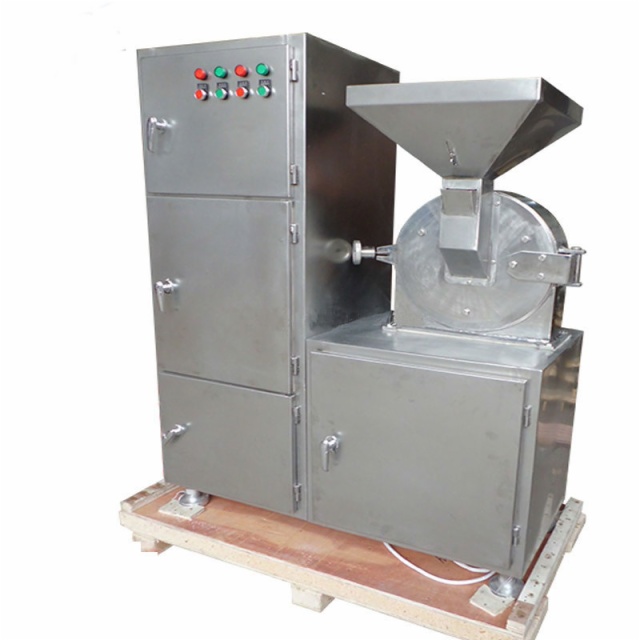

    This cabinet type grinding machine consist of SF pulverizer, ESC collector box and ESC deduster, all of which are made of Stainless steel, meeting the GMP requirement.



    Features:
    • Firm and stable running,
    • nice grinding milling effect,
    • less dust come out during working,
    • wide application for pulverizing different kinds of material into different size of powder, by changing diverse grinding part.
    • Metting GMP requirement
    Working Principle:
    The high speed relative motion between moving fluted disc make the material in chamber cutted, crushed, impacted under high strengh friction, then the fine powder come out through screening sieve.
    Different size of powder could be made by change the various size of sieve screen.

    Technical data:
    Model
    Capacity  (kg/h)
    Rotary speed of main axis(r/min)
    Working noise(db)
    Finesess of powder(mesh)
    Motor power (KW)
    Fan Power (KW)
    Overall size(mm)
    Weig(kg)
    180B
    10-30
    4200
    <85
    20-120
    2.2
    0.18
    890*500 *1260
    120
    250B
    50-250
    4200
    <85
    20-120
    5.5
    0.75
    1100*650 *1500
    250
    320B
    80-300
    4200
    <85
    20-120
    7.5
    0.75
    1250*1070 *1300
    300
    420B
    160-500
    3200
    <85
    20-120
    11
    1.1
    1350*700 *1700
    400
    520B
    300-800
    3200
    <85
    20-120
    18
    1.5
    1500*1000*1750
    700
    620B
    500-1000
    2800
    <85
    20-120
    22
    2.2
    1500*1000*2700
    950
