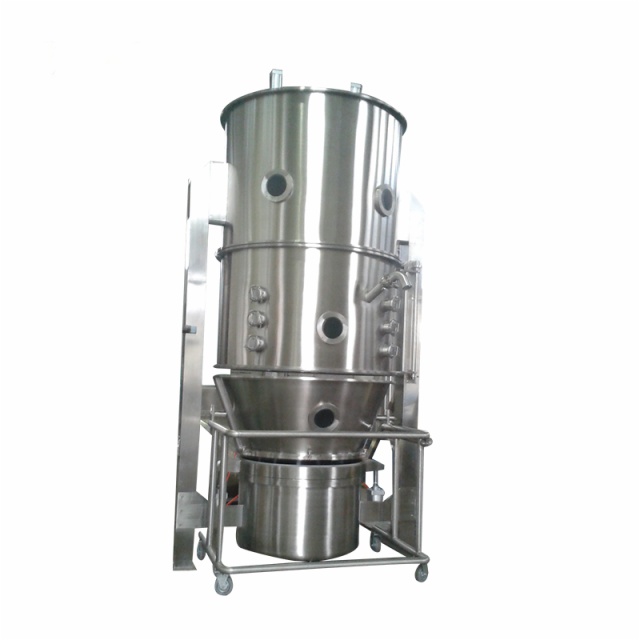

The powder granules is fluidized in loop state inside the container, would be pre-heated and mixed by purified air, and then atomized and sprayed the adhesive solution into container, the particle or powder would become the granule with even adhesives. The hot air would dry the stuff continuously, evaporate the moisture, the process repeats again & again till the the ideal, uniform porous pellet is formed.



 -Granulate from powder, fluidity is improved, the dust is reduced, and further more, the solving property is improved a lot.

-Mixing, granulating and drying is completed in one step inside the machine.

-Antistatic filter bag is mounted to ensure the safe operation.

-There is pressure releasing hole with the machine to prevend any damage to personnel.

-No dead corner inside the container, fast charging and discharging, easying cleaning to meet GMP standard.



Application:

FL-3	FL-5	FL-15	FL-30	FL-60	FL-120	FL-200	FL-300	FL-500
Volule of contianer / L	12	22	45	100	220	420	670	1000	1500
Diameter of contianer/ mm	300	400	550	700	1000	1200	1400	1600	1800
Production Capacity/ kg	1.5~4.5	4~6	10~20	15~45	30~90	80~160	100~300	150~450	250~750
Blowigng capactiy / m3/h	1000	1200	1400	1800	3000	4500	6000	7000	8000
Fan power/ kw	3	4	5.5	7.5	11	18.5	22	30	45
Steam Consumption/ kg/h	15	23	42	70	141	211	282	366	451
Steam pressure/ Mpa	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6	0.3~0.6
Compressed air consumption /  m3/min	0.9	0.9	0.9	0.9	1.0	1.0	1.1	1.5	1.5
Weight of Machine/ Kg	500	700	900	1000	1100	1300	1500	1800	2000
Working Temperature	Can be adjustable between Room temperature~120°C
Working time / min	45~90min according to different stuff
Yielding Ratio / %	More than 99%
Noise/db (A)	The fan and main machine is sperated, noise is less than 75db
Machine Size	Please check with sale manager
