Product Description

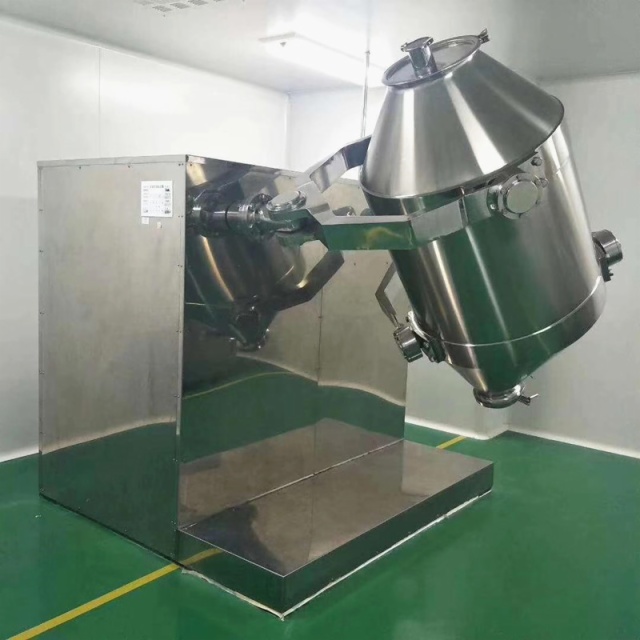

The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is a remarkable weight rate.
The mixing rate is up to 100%.The machine id the desired product in various mixers at present.
The material charge rate of the barrel is big. The maximum rate can be up to 90%(the normal mixer has only 40% charge rate.). It is high in efficiency and short in the mixing time.
The barrel adopts arc shape connections and its well polished.
The machine is used for mixing the powder state and grain state materials with the high uniformity in the pharmaceutical, chemical, food, light industry, electronic, mechanical, metallurgical, nation defense industries, and other science and technology institutes.
The mixing rate is up to 100%.The machine id the desired product in various mixers at present.
The material charge rate of the barrel is big. The maximum rate can be up to 90%(the normal mixer has only 40% charge rate.). It is high in efficiency and short in the mixing time.
The barrel adopts arc shape connections and its well polished.
The machine is used for mixing the powder state and grain state materials with the high uniformity in the pharmaceutical, chemical, food, light industry, electronic, mechanical, metallurgical, nation defense industries, and other science and technology institutes.
Principle
When it works, the mixer is provided with three-dimensional movement and carries out revolution and rotation. The mixer has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.
Models Available>>>
| Model | Mixing Volume L | Maximum Loading L | Speed (rpm) | Total Power (Kw) | Dimension(L*w*H) | Weight (kg) |
| HD-5 | 2 | 1 | 0-12 | 0.18 | 300*450*300 | 15 |
| HD-5 | 5 | 4 | 0-12 | 0.25 | 600*1000*700 | 150 |
| HD-15 | 15 | 12 | 0-12 | 0.37 | 700*1000*700 | 200 |
| HD-50 | 50 | 40 | 0-12 | 1.1 | 1000*1400*1100 | 300 |
| HD-100 | 100 | 80 | 0-12 | 1.5 | 1200*1700*1200 | 400 |
| HD-200 | 200 | 160 | 0-12 | 2.2 | 1400*1800*1500 | 600 |
| HD-300 | 300 | 240 | 0-12 | 3 | 1800*1950*1700 | 800 |
| HD-400 | 400 | 320 | 0-12 | 4 | 1800*2100*1800 | 920 |
| HD-500 | 500 | 400 | 0-12 | 5.5 | 1900*2000*1950 | 1380 |
| spec | HD-600 | HD-800 | HD-1000 | HD-1200 | HD-1500 | HD-2000 |
| the volume of the barrel(L) | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| charge volume (L) | 540 | 720 | 900 | 1080 | 1350 | 1800 |
| charge weight(kg) | 150-324 | 200-432 | 250-540 | 300-648 | 400-810 | 500-1080 |
| the rotation speed of the main shaft(r/min) | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| motor power(kW) | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| size LxWxH(mm) | 1850×2500 ×1750 | 2100×2650 ×2000 | 2150×2800 ×2100 | 2000×3000 ×2260 | 2300×3200 ×2500 | 2500×3600 ×2800 |
| weight(kg) | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
Main Features
1. The mixer is provided with three-dimensional movement so that the materials complete the process of mutual mixing from the agglomeration status to dispersion status under the actions of flowing, shearing, translational movement, and dispersion, even mixing of materials is ensured and the evenness reaches 99.9%. In ordinary mixers, the materials only make simple dispersion and agglomeration movement in the vessel, which is featured by low efficiency and bad mixing quality.
2. With short mixing time and high efficiency, the effective loading rate of the vessel reaches 80%. (The rate of ordinary mixers in only 40%.)
3. The machine is low and does not have special requirements for plants so that investment in basic construction is reduced.
4. The mixing barrel and machine body driving part can adopt partition installation to meet the GMP requirements.
5. For the SYH-2 model mixer, mixing vessels of various shapes can be placed in the mixing barrel for mixing with convenient use.
6. Stepless speed adjustment can be realized to facilitate material loading and unloading.
7. It is featured by long service life and low noise.
8. Vacuum feeding and lifting machine feeding are available.
2. With short mixing time and high efficiency, the effective loading rate of the vessel reaches 80%. (The rate of ordinary mixers in only 40%.)
3. The machine is low and does not have special requirements for plants so that investment in basic construction is reduced.
4. The mixing barrel and machine body driving part can adopt partition installation to meet the GMP requirements.
5. For the SYH-2 model mixer, mixing vessels of various shapes can be placed in the mixing barrel for mixing with convenient use.
6. Stepless speed adjustment can be realized to facilitate material loading and unloading.
7. It is featured by long service life and low noise.
8. Vacuum feeding and lifting machine feeding are available.
