    100T Hydraulic press

    • Description
    • Inquiry

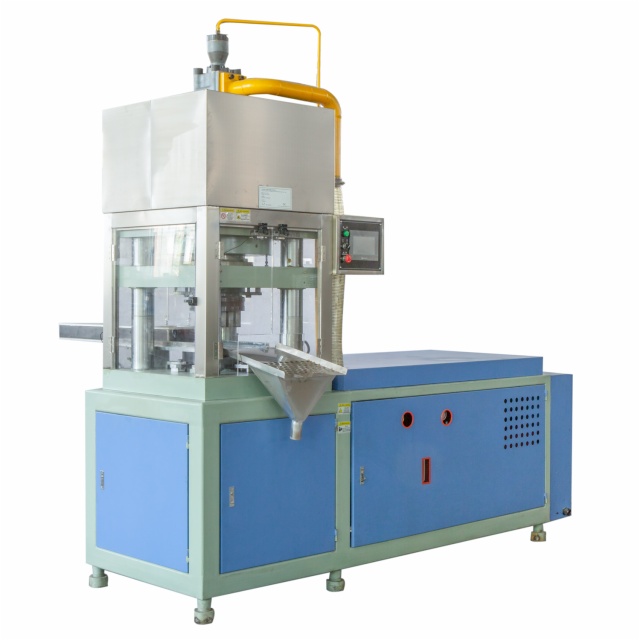

    The automatic hydraulic press machines are widely used for compressing various powders and granules into blocks or tablets. These machines are designed with a four-pillar structure and are capable of pressing multi-cavity molds, as well as providing pressure-holding functionality, which significantly increases production capacity.

    They have been utilized in the following industries:

    Food: Candy pieces, coffee pieces, chocolate, flavored pieces, chicken pieces, glucose blocks.

    Agriculture: Feed blocks, fertilizer tablets, animal food, plant ground blocks.

    Electronic Battery: Thermistors, IC components, carbon brush films, toner fasteners.

    Healthcare products: Calcium tablets, propolis tablets, effervescent tablets, bath salts tablets, animal licking salt blocks.

    Chemical: Disinfection tablets, insect repellent tablets, mothballs, cleaning agents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, grinding wheel blocks, magnetic materials.






    Model 60T 100T 200T 300T
    Max top cylinder pressure 60T 100T 200T 300T
    Max bottom cylinder pressure 30T 50T 100T 150T
    Max length of upper punch 200mm(customized) 200mm(customized) 200mm(customized) 300mm(customized)
    Max depth of fill 200mm(customized) 200mm(customized) 200mm(customized) 250mm(customized)
    Max diameter of down punch 200mm(customized) 200mm(customized) 200mm(customized) 300mm(customized)
    Capacity(times/minute) 8-10 8-10 4-6 4-6
    Motor 7.5kw 11kw 15kw 15kw
    Machine weight 2.2T 2.8T 5T 6T
